DIY Solar Panels



In this section I will discuss how to make your own solar panels including an in-depth financial analysis of an off-grid battery bank versus a grid-tie inverter as well as methods to determine insolance for your area as well as calculate wattage per area for your planned system.

My system utilizes recycled windows picked up for free from Craigslist as well as photovoltaic cells and grid-tie inverters picked up from Amazon. This blog entry will focus on how you can build your own photovoltaic system on a budget.

Thank you for visiting. This section is currently under construction. As you can see, this website covers several topics. If you would like to see this section expanded next, please use the voting poll to the right. Thanks!

DIY Lye

In this section I will discuss the process for making lye at home. Lye can be used for making soaps, cleaning products, and bio-diesel. The process in simple and inexpensive.

The following is a list of materials required for this project:

- ash acquired from burning hardwood (700 or higher on the Janka hardness scale e.g. Maple, Cedar, Cherry, Oak, Ash, Beech, and Walnut. Not softwoods like Fir, Pine, Alder, Juniper, etc)
- 2 buckets
- straw
- river rock
- rainwater (not tap water, surface water, or well water due to dissolved mineral content)

Optional:
- a potato (to roughly check pH)
- pH meter, test strips, or aquarium test kit
- bulkhead fitting and ball valve with inorganic gaskets
- 2 bricks

Note: It is important to not use metals or organic components is the lye bucket as these materials will quickly corrode from the lye.

Thank you for visiting. This section is currently under construction. As you can see, this website covers several topics. If you would like to see this section expanded next, please use the voting poll to the right. Thanks!

Tuesday, July 9, 2013

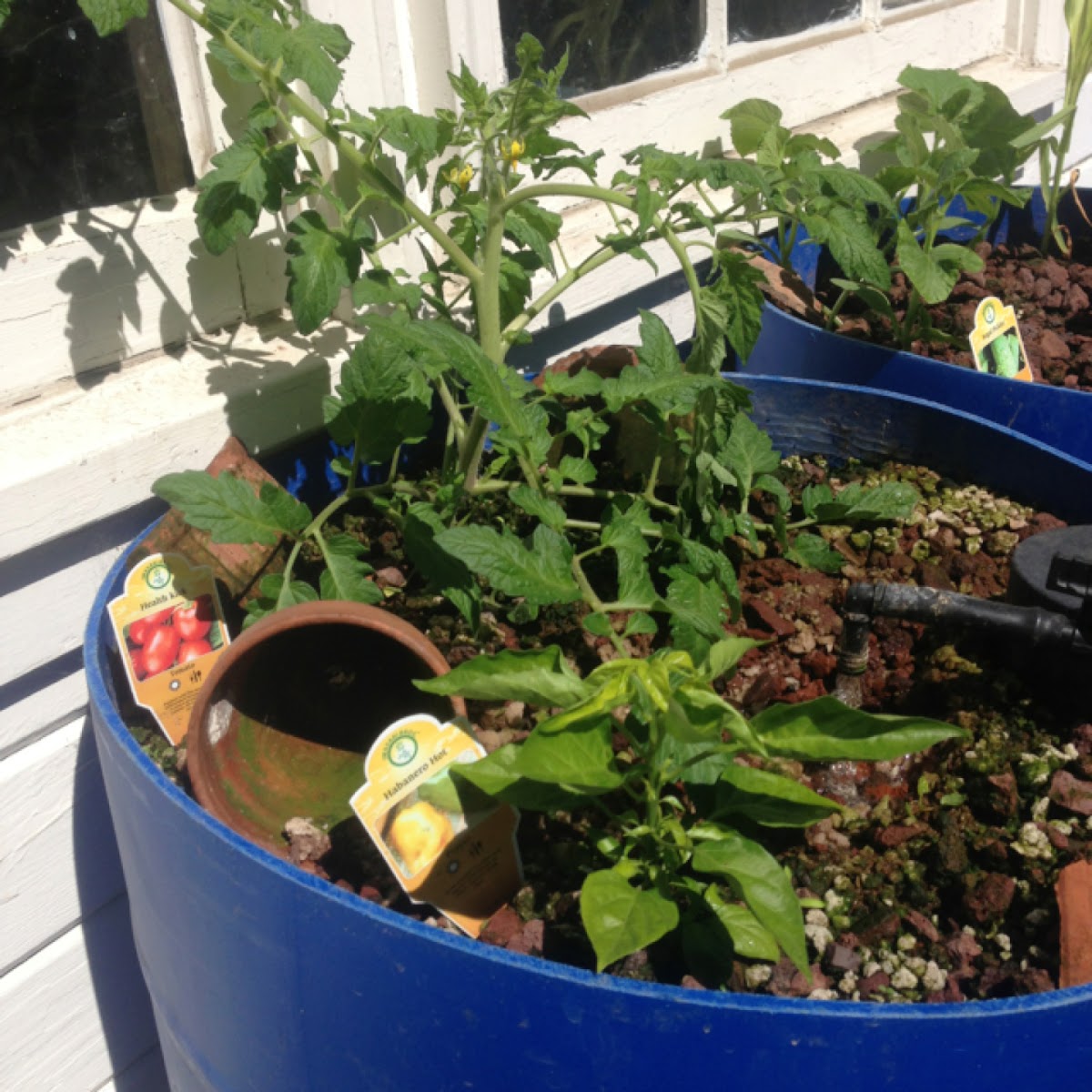

Aquaponics

Part 1 - What is Aquaponics and How is it Better than Soil Gardening and Hydroponics?

Aquaponics is the union of Hydroponics (growing plants without soil) and Aquaculture (raising fish). The concept dates back thousands of years to ancient Egypt and the Aztecs, who built floating islands for growing crops in canals where they raised fish. Ancient far East cultures, like China and Thailand, raised Koi in their rice paddies. The Creole peoples in the Southern United States introduced Crawfish to their rice paddies because it offered an additional food source for the farmer - a practice that was later picked up in China. What do all of these farming practices have in common? They all use raw marine waste as the sole nutrient source for the plants. When the conditions are right, bacterial cultures convert the raw ammonia waste into Nitrites (Nitrosoma sp. bacteria) then into Nitrates (Nitrospira sp. and Nitrobacter sp. bacteria) which are readily available for plants to use. These same bacteria are responsible for the Nitrogen Cycle in soil, but it is much easier to create the ideal conditions (pH, temperature, available oxygen) for the bacteria in water. While it is possible to measure soil temperature and pH the process is time consuming and you can never be sure that the sample collected for testing represents the whole grow bed. Poorly distributed buffers like limestone can easily create pH hot spots and the shade from the growing plants can fluctuate the soil/root temperatures. Furthermore, oxygen concentration in soil is exceedingly difficult to control. One accidental over-watering can deplete the soil of oxygen, kill off the active bacteria cultures, and drown the plant (plants require oxygen at the roots to exchange nutrients). In aquaponics and hydroponics, the water is heavily aerated (introducing dissolved oxygen) and circulated to ensure a uniform pH and temperature, which can be monitored continuously by digital meters; pH can also be verified using simple aquarium test kits.

In a soil-less grow, nutrients are available as the plants need them. In soil, time-release fertilizers are used to ensure that nutrients are available until the next application. However, these time-release fertilizers often run off during the next rain and are a huge contributor to polluted water supplies. Fertilizers intended for hydroponics should not be used in soil because they will drain off before they even have a chance to be metabolized by the Nitrifying bacteria in the soil. Plants will stress during the "feast or famine" presented by nutrient overdose, followed by zero nutrients until the next watering.

So, by now you may see the benefit of soil-less over soil gardening, but you may be asking "why not hydroponics?" The simple answer... hydroponics nutrients are bottled in a salt form to ensure shelf-life rather than their whole, organic, form. In the absence of oxygen (e.g. a bottle of fertilizer on a shelf), Denitrifying bacteria such as pseudomonas sp., alkaligenes sp., and bacillus sp., would break down whole organic matter and release Nitrogen gas - causing the fertilizer to ferment. To avoid this, fertilizer companies ship only salt-based fertilizers or organic fertilizers with an antimicrobial agent (which also hinders the Nitrifying bacteria in your system when you need it most). Salt-based fertilizers must first be broken down from their salt form before they can be used. Then, these salts accumulate in your system which limits the plants ability to uptake water and nutrients. To combat this, hydroponics growers frequently replace their water - resulting in a costly loss of nutrients, wasted water, and environmental pollution. With this frequent water change, a hearty bacteria culture does not have time to establish. Aquaponics suffers from none of these setbacks, because nutrients are continuously produced fresh and ready for the plants to use. The key is the bacteria culture. Like a fine wine, an aquaponics system needs to age to become established. As the system ages, the bacteria culture grows and becomes more robust. As the bacteria culture grows it is able to process more waste and produce more nutrients... meaning it can support more plants or plants with higher nutrient demands. A well-establish aquaponics system can produce roughly 30% higher yield and 30% faster growth rate than a hydropinics system (which is already 50% faster than soil-based growing).

Food for Thought: The most common fertilizers are potassium nitrate and ammonium nitrate. Both are harmful if swallowed/inhaled/ingested and if they come in contact with skin they should be thoroughly washed away. Both are most commonly made from chemically processed salts extracted from mined minerals. Both are used in making explosives. Both have extensive handling and disposal instructions. Fish poop... well, that's already in the rivers, and as gross as it may sound, is perfectly safe to drink. Which would you rather have traces of in your crops?

Stay Tuned for More Updates! Like. Share. Comment. Post. Whatever you feel is right. More to come soon. Please vote on the poll to the right if this is the section you would like to see expanded next, thanks!
